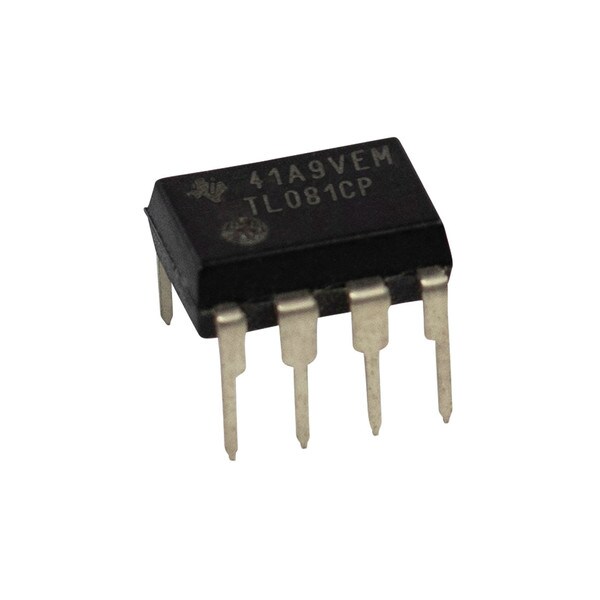

TL081CP Single Bifet Input Op Amp

(0) No Reviews yet
$0.99
QuantityPrice
1 – 9$0.99
10 – 19$0.94
20 – 99$0.89
100 +$0.87
SKU: 9000020
Weight: 0.003 lb
Sale Unit: Piece

In Stock

247 IN STOCK

227 // 10-11-18 DCEP

The TL081 JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
Features:
  • Low Power Consumption: 1.4 mA/ch Typical
  • Wide Common-Mode and Differential Voltage Ranges
  • Low Input Bias Current: 30 pA Typical
  • Low Input Offset Current: 5 pA Typical
  • Output Short-Circuit Protection
  • Low Total Harmonic Distortion: 0.003% Typical
  • High Input Impedance: JFET Input Stage
  • Latch-Up-Free Operation
  • High Slew Rate: 13 V/μs Typical
  • Common-Mode Input Voltage Range Includes VCC+
Applications:
  • Tablets
  • White Goods
  • Personal Electronics
  • Computers
