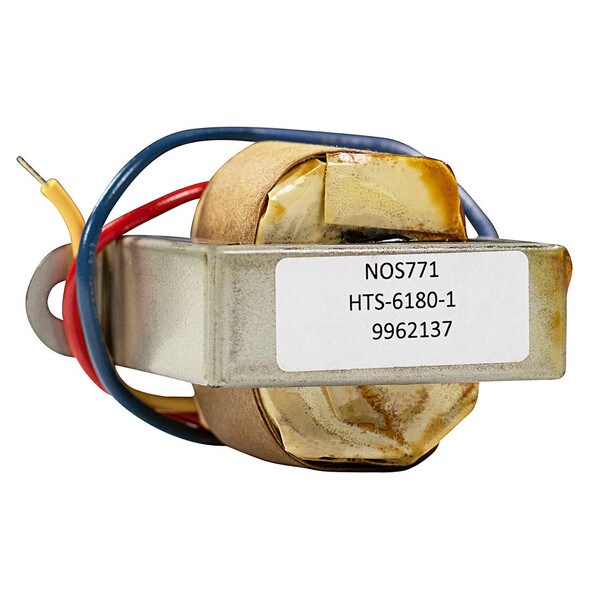

Tweed Champ 5F1 Style NOS Output Transformer 125A35A
Replacement for Fender part numbers 125A35A, 125A3A, and 022905.
Used in our Mojotone Tweed Champ kit.
All Mojotone Transformers are made in the USA. Quality, Reliability, and Excellence are what make our transformers the best around.

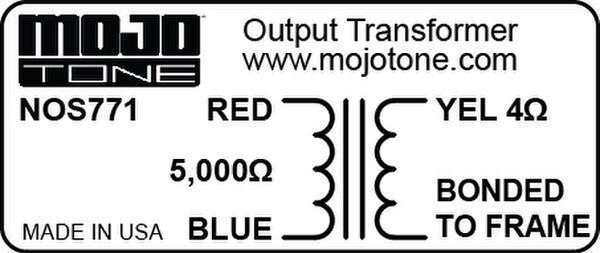

Please use caution when referencing these wiring diagrams. Mojo transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojo is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojo transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.
Output Taps: 4 ohm
Primary Impedance: 5,000 Ohms
X Mount with 2 3/8'' 2-hole centers
Paper bobbin / high-grade steel
Note on installation: Since the primary is a single coil of wire, the phase relative to the secondary is difficult to determine during manufacturing. As a result, there is a good chance the primary will be out of phase with a negative feedback circuit. This will cause an immediate high frequency oscillation. To solve the issue, simply swap the locations of the primary lead connections. Start with blue on the plate, and if it is out of phase, swap it with the red.
