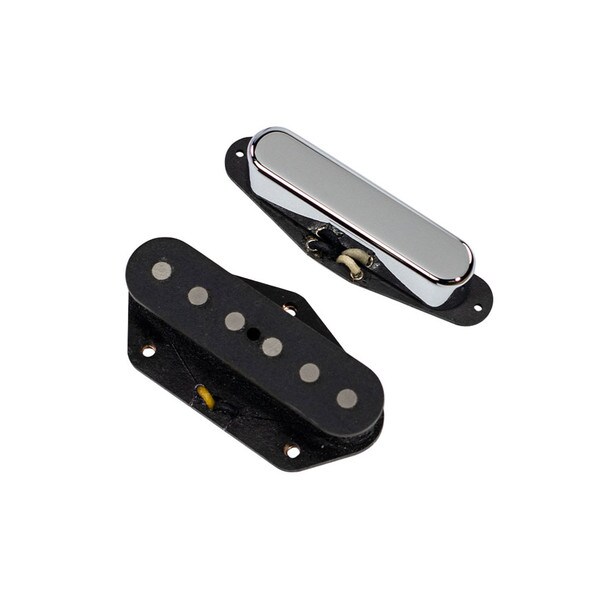

'52 Quiet Coil Tele® Pickup

17Reviews
$109.95 to $239.95
SKU: S352Q381
Weight: 0.3 lb
$109.95 to $239.95

In Stock

17 IN STOCK

Tele QC

Click here for current lead times

Our approach was very simple, to make a tele pickup with the exact same specs as a vintage tele pickup, without the hum.

No batteries, stacked coils, or anything else associated with other hum-canceling pickups were used in our design. The result is simply the most pure and authentic tele tone possible, with absolutely no loss of true single coil tone. They are warm and articulate, with every bit of single coil sparkle and twang, just like original handwound 1952 tele pickups.

NOTE: With all Mojotone “Quiet Coil™” pickups, you never have to worry about string spacing and radius issues, or the magnets pulling the strings out of tune, and you can bend the strings heavily without ever losing focus or sustain. All of this while achieving perfect single coil tone and absolutely no hum!

Quiet Coil Design Features...

-Consistent scatterwound coils for that handwound tone, sensitivity, and clarity.

-Vintage formulated Alnico magnet cores with lower Gauss levels like an aged vintage tele pickup.

-Vintage cloth covered leads for easy push-back soldering.

-Matched resonant peak frequency, inductance, and resistance of a vintage single coil.

-No routing modifications are required to fit shallow vintage routs like the taller stacked hum-cancelling designs.

-Less than 10 parts are used to build the Quiet Coils. Like a vintage tele pickup, they are SIMPLE!

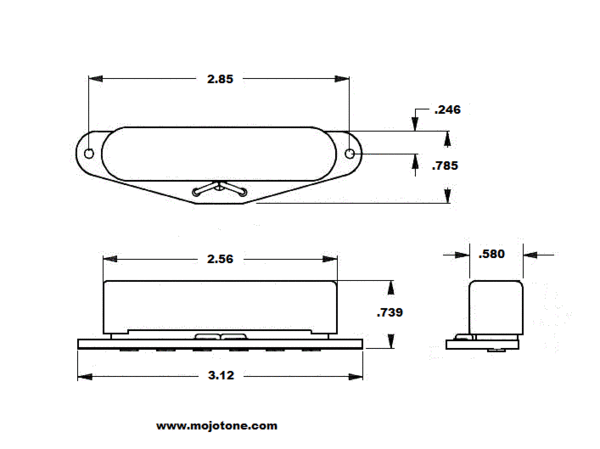

Neck: 6.7K
Magnet: Alnico 5
Output:
4.5
Bass:
3
Mids:
3.5
Treble:
6

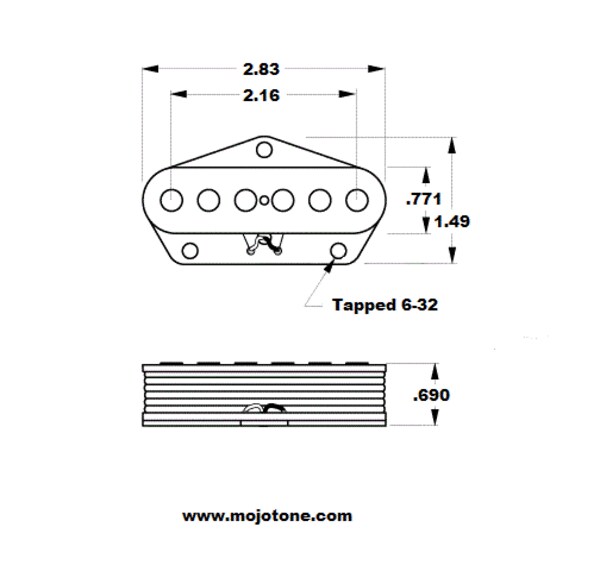

Bridge: 7.5K
Magnet: Alnico 5
Output:
5
Bass:
4.5
Mids:
5
Treble:
5.5

Product Demo




Ratings & Reviews

17 reviews

  • 4 stars
  • 0 reviews
  • 3 stars
  • 0 reviews
  • 2 stars
  • 0 reviews
  • 1 star
  • 0 reviews
8/18/2021 1:55 pm

Amazing Product

by Paul M -

This is my second set of Quiet Coils from Mojotone. I purchased one of their Strat sets (which are amazing too!) Only buy these pickups if you want spanky, honky, amazing tele tones that are perfectly balanced and easy to install that are also extremely quiet. These pickups give me everything I want from a single coil with none of the downsides. The quality of the build is impeccable and their instructions are amazing. These pickups are highly recommended!

8/18/2021 12:18 pm

Perfect replacement for a Kotzen Tele neck pickup!

by Bill T. -

Excellent pickup! I took a chance on this pickup since it was the only one I could find dimension-wise that would fit in a Kotzen Telecaster without having to route out the body. The sound produced from this thing was amazing and adjusting the height really helped blend it perfectly with the bridge humbucker already in the guitar. It’s dead silent and accurately reproduces the Tele neck sound. Highly recommended!
