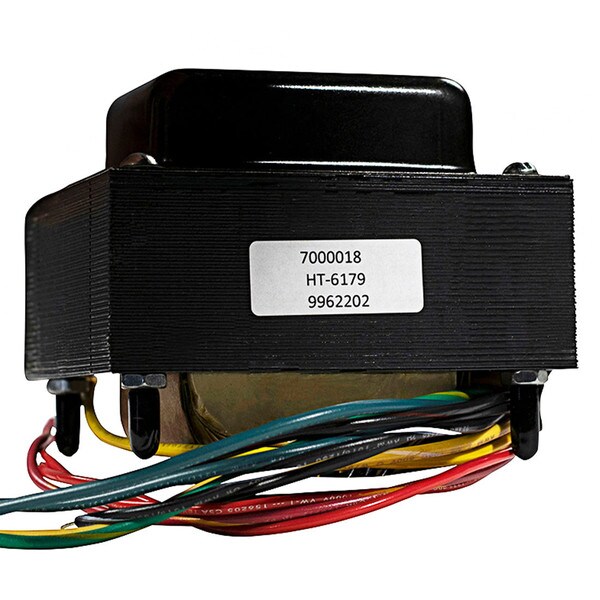

British Style 18 Watt Power Transformer (Direct Replacement for the Marshall® 18W)
All Mojotone Transformers are made in the USA. High Quality, Reliability, and Excellence are what make our transformers the best around.

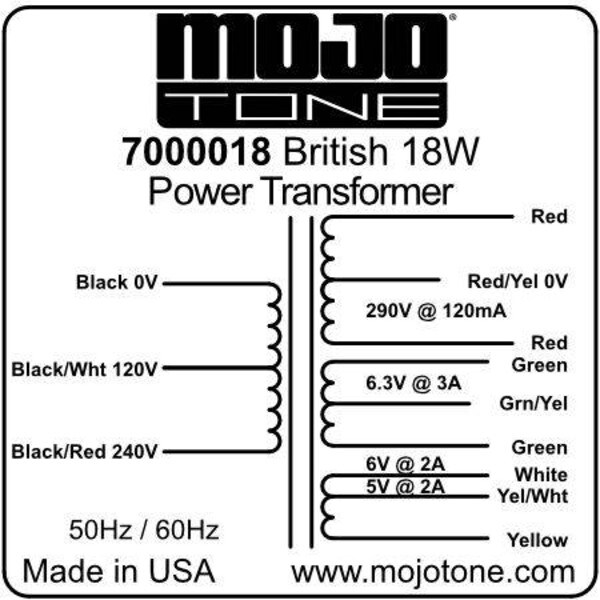

Please use caution when referencing these wiring diagrams. Mojo transformers have undergone various changes over the years and these wiring diagrams are meant to aid in the purchasing process and represent current production only. These diagrams may not necessarily correspond to previous models. Mojo is not liable for damage that may result from the use of these diagrams. Please contact us if you are unsure about anything relating to Mojo transformers or if you need to verify data on a specific transformer you have been shipped, especially if you did not purchase the transformer within the past six months.
Z Mount on 2-1/2'' x 3-1/8'' 4-bolt mounting centers. (Direct Replacement for the Marshall® 18W)
Ratings & Reviews
Will be purchasing more of these
This is the Heyboer 6179 18W Power Transformer. Made in Michigan USA. Phenomenal for an 18W build. Comes with a single end-bell for traditional laydown chassis mounting. I mount mine standup-style using the end bell conversion pieces from Heyboer. Works perfectly with a 6CA7 / EZ81 rectifier and also with 1N4007 diodes. Powers 2xEL84, 2x6094 and 2x6973 output tubes nicely. Will be purchasing more of these. Mojo offers the best pricing on these particular transformers of all the distributors I could find. Would work with 240VAC or 120VAC input to the primary side, I have only tested the 120VAC tap and they work perfectly in the US.
The Heyboer transformers are my "goto" transformers for high quality guitar amp builds. I've used a variety of their transformers and Mojotone is an awesome supplier of their product. If you want to get into some amazing 18 Watt tone heaven, get the Heyboer PT and OT.
