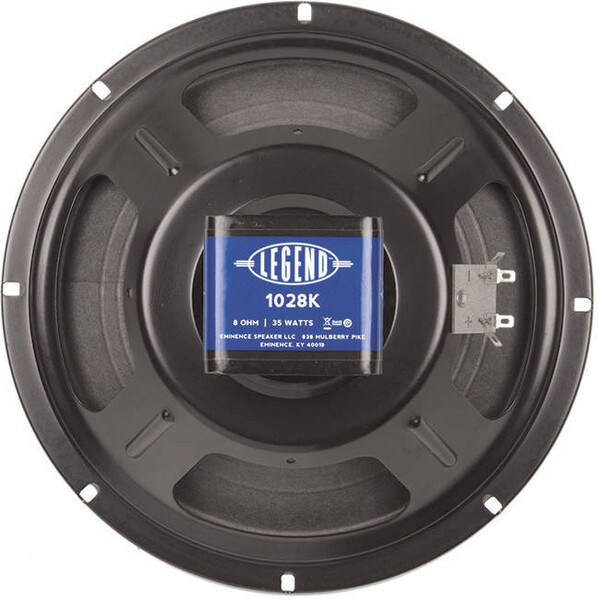

Eminence Legend 1028K 10'' Speaker 8 Ohm 35W

(0) No Reviews yet
$129.99
SKU: 1000070
Weight: 6 lb
Sale Unit: Piece

In Stock

1 IN STOCK

Even more popular than its ALNICO sister, the 122, this classic lends that warm blues tone that has helped in making many of its users legendary. Like the 12" ALNICO, this speaker was created for lower power, vintage amplifier applications where a thinner 'Jensen' tone is desired. Make that old amp new again, or take a new one and make it sound old!
  • Nominal Basket Diameter: 10", 254mm
  • Nominal Impedance: 8 ohms
  • Power Rating: 35W
  • Music Program: N/A
  • Resonance: 95Hz
  • Usable Frequency Range: 100Hz - 5.5kHz
  • Sensitivity: 97.4dB
  • Magnet Weight: 6 oz.
  • Gap Height: 0.25", 6.2mm
  • Voice Coil Diameter: 1", 25.4mm

MOUNTING INFORMATION
  • Recommended Enclosure Volume
  • Sealed: Acceptable
  • Vented: Acceptable
  • Driver Volume Displaced: 46.7 cu.in. / 0.77 liters
  • Overall Diameter: 10.11", 256.8mm
  • Baffle Hole Diameter: 9.05", 229.9mm
  • Front Sealing Gasket: Fitted as standard
  • Rear Sealing Gasket: N/A
  • Mounting Holes Diameter: 0.22", 5.6mm
  • Mounting Holes B.C.D.: 9.6", 243.8mm
  • Depth: 4.8", 122mm
  • Net Weight: 2.9 lbs, 1.3 kg
  • Shipping Weight: 4 lbs, 1.8 kgs
