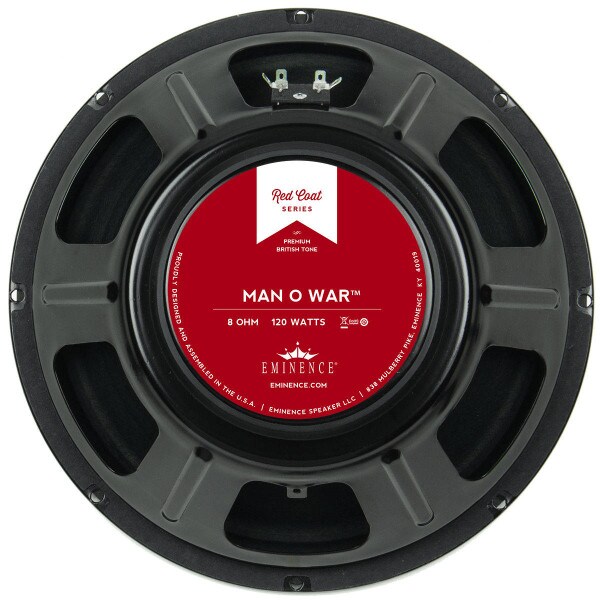

Eminence Man O War 12'' Speaker 8 Ohm 120W
The Eminence Man-O-War Red Coat guitar amplifier speaker is the perfect match for open or closed back 1x12, 2x12 or 4x12 combos or cabinets. The Voice Coil measures 2 inches in diameter with a magnet weight of 38 oz. Rated at 120 watts, the Man-O-War provides a moderate tone with a chunky shape while the mid and high-end response is much more aggressive. This Loud Eminence replacement speaker offers articulate audio in every register with a sparkly top end perfect for rock, grunge and metal guitar tones.
- Nominal Basket Diameter: 12", 304.8mm
- Nominal Impedance: 8 ohms
- Power Rating: 120W
- Music Program: N/A
- Resonance: 91Hz
- Usable Frequency Range: 70Hz - 5.5kHz
- Sensitivity: 102dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31", 7.92mm
- Voice Coil Diameter: 1.75", 44.5mm
MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: Acceptable
- Driver Volume Displaced: 122 cu.in. / 2 liters
- Overall Diameter: 12.02", 305.3mm
- Baffle Hole Diameter: 10.97", 278.6mm
- Front Sealing Gasket: Fitted as standard
- Rear Sealing Gasket: Fitted as standard
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.63", 295.4mm
- Depth: 5.2", 132mm
- Net Weight: 8.1 lbs, 3.7 kg
- Shipping Weight: 9.9 lbs, 4.5 kgs
