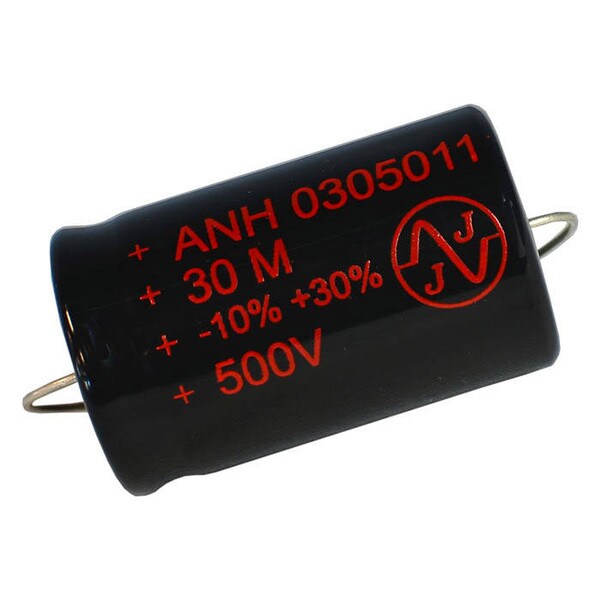

JJ Electronic 30uF 500V Electrolytic Capacitor

(0) No Reviews yet
$7.25
SKU: V1ANH945
Weight: 0.125 lb
Sale Unit: Piece

Temporarily Out of Stock

New Item -1/15/19

Electrolytic axial capacitor rated at 500 Volts. These capacitors have special features which enable them to excel in music industry applications. Low impedance, Low ESR, Wide frequency range.
  • Operating temperature: -25°C to 70°C
  • Nominal Voltage: 500Vdc
  • Capacitance: 30uF
  • Tolerance: -10%+30%
  • Dissipation factor: 0.18 Leakage current (after 5 minutes application of rated voltage) 0.004 C.U.
  • Dimensions: Length 42mm (1.66") x Diameter 25mm (0.99") 1.70" lead length.
