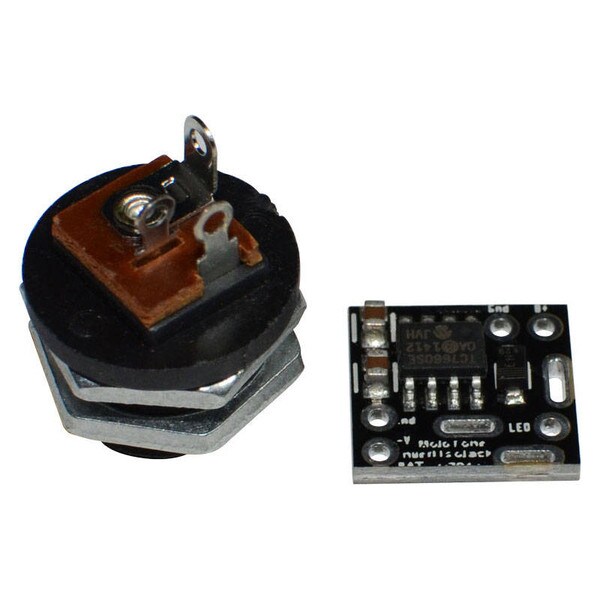

Mojotone Micro -9V Charge Pump / Dual Rail Power Supply
The Micro -9V Charge Pump was designed to help out with pedals that require a positive ground for PNP transistors but would also allow daisy chaining with other pedals on the same power supply. The tiny board has solder tabs for 9V (+) battery input, (2) ground tabs, -9V supply and +9V supply for your LED. The board can also be used for a dual power supply setup for pedals using opamps using the LED solder tab for you +9V.
Max Power Supply Current: 20ma
Max Input Voltage: 12V
New from Mojotone. Micro internal power supplies for effects pedals. Measuring in at 1/2” x 1/2”, these tiny power supplies are small enough to install on the back of an internal mount DC jack or be tucked away in the corner of your effects pedal. Designed for low current draw, they can even be powered by a 9v battery.
Max Power Supply Current: 20ma
Max Input Voltage: 12V
New from Mojotone. Micro internal power supplies for effects pedals. Measuring in at 1/2” x 1/2”, these tiny power supplies are small enough to install on the back of an internal mount DC jack or be tucked away in the corner of your effects pedal. Designed for low current draw, they can even be powered by a 9v battery.
