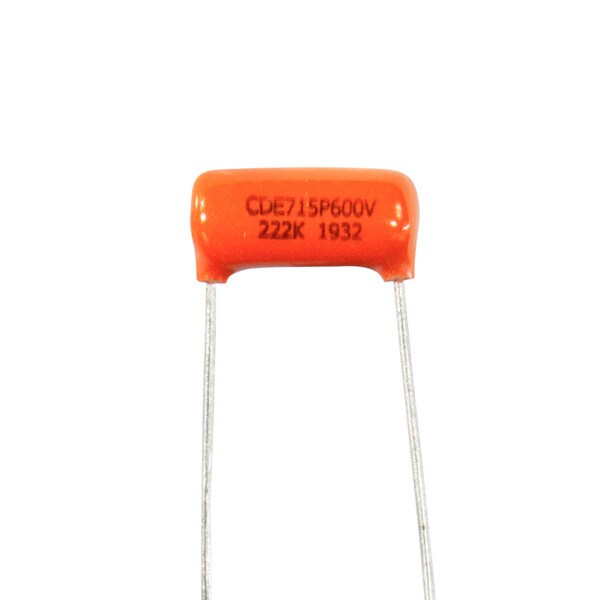

Orange Drop 0.0022uF 600V 715P Series Capacitor

(0)No Reviews yet
$1.40
SKU: 5165002
Weight: 0.00625 lb
Sale Unit: Piece

In Stock

908 IN STOCK

The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P series ideal for high current, high pulse applications.

.0022 microfarad / 2.2 nanofarad - 600 volt
  • Type: Film/Foil
  • Capacitance: .0022uF/2.2nF
  • Rated Voltage: 600VDC
  • Tolerance: +/-10%
  • Operating Temp.: -55°C to +85°C (+105°C with proper voltage derating)
  • Dimensions: 8.4mm dia. x 17.8mm length
  • Lead Spacing:12.7mm
For more information on this product, please download the datasheet:

Datasheet
