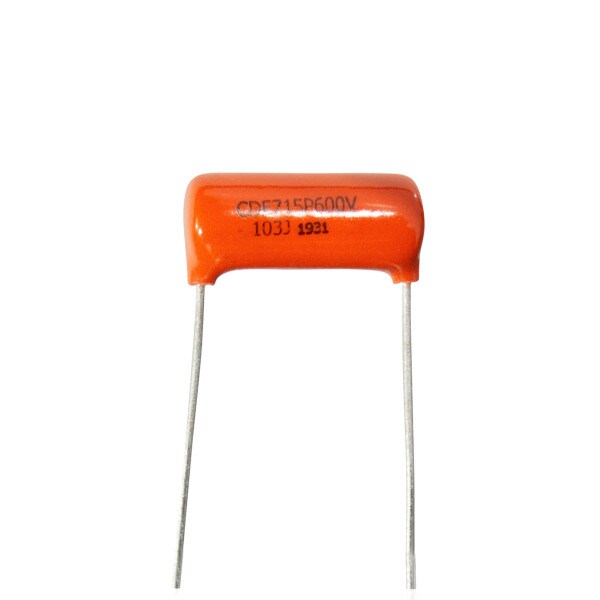

Orange Drop 0.01uF 600V 715P Series Capacitor

(0)No Reviews yet
$1.40
SKU: 5165010
Weight: 0.00625 lb
Sale Unit: Piece

In Stock

1104 IN STOCK

The 715P and 716P series are manufactured with polypropylene film and extended foil. Polypropylene has a very low dissipation factor, low dielectric absorption and exhibits excellent capacitance stability. These characteristics combined with the direct connection of the lead wire to the extended foil electrode makes the 715P and 716P series ideal for high current, high pulse applications.

.01 microfarad / 10 nanofarad - 600 volt
  • Type: Film/Foil
  • Capacitance: .01uF/10nF
  • Rated Voltage: 600VDC
  • Tolerance: +/-5%
  • Operating Temp.: -55°C to +85°C (+105°C with proper voltage derating)
  • Dimensions: 9.1mm dia. x 22.9mm length
  • Lead Spacing: 17.5mm
