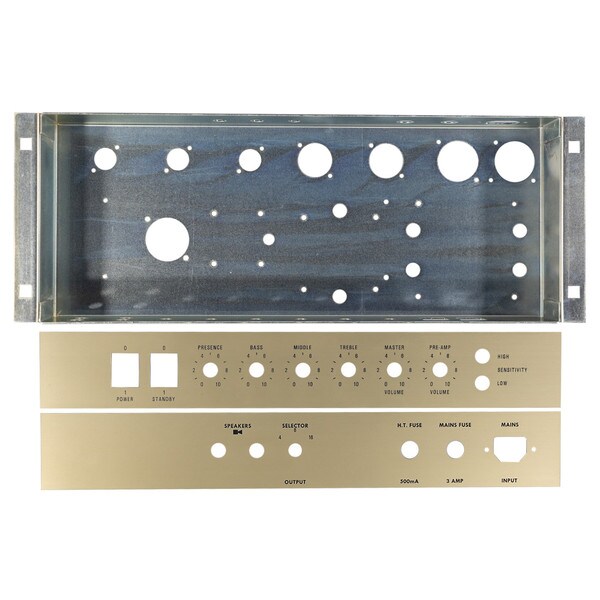

British 50W 2204 Chassis Set (with Front/Back Faceplates)

(0)No Reviews yet
$128.88
SKU: 5252013
Weight: 4.72 lb

5252013

Mojotone reproduction chassis. Same size and style as the Marshall® JMP 2204 / 1987x


Please note: The rear hole pattern is not the same as the Marshall® chassis. Impedance selector switch holes size accommodates the Mojotone Impedance Selector Switch. This chassis requires cage nuts SKU# 8000005 for mounting.
  • Material:17 Gauge Zinc Plated Steel - 0.054”
  • Thickness:1.37mm Thickness (Features welded corners)
  • Dimensions: (H) 2 ½“ x (W) 17“ x (D) 6 ¾“ (Width including wings 18 ¼“)
  • Weight: 4.5 lbs.
  • Octal Socket Holes: 2
  • 9-Pin Socket Holes: 3
  • Power Transformer:Power Transformer
  • Output Transformer:Output Transformer
  • Choke:Choke
  • Hardware:Metric Chassis Mounting Screws
  • Requires:Metric Chassis Cage Nut
  • Faceplates: Front-engrave brushed gold acrylic faceplate set w/ black text
  • Faceplate Dimensions: (H) 2 ½" x (W) 17"
  • Chassis Mounting:17 ¾" x 4 ¾" center to center
