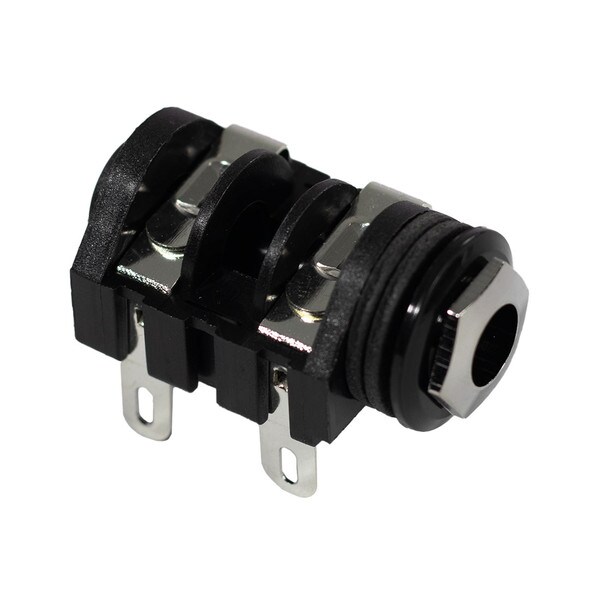

J1 Jack 4-Lug with Chrome Nut
J1 Jack 4-Lug with Chrome Nut. Suitable replacement for Marshall® Amps
6.35mm (1/4") Mono Jack Socket, switched, normally closed.
6.35mm (1/4") Mono Jack Socket, switched, normally closed.
Electrical: Rated Current: 5A
Rated Voltage: 2000V DC Min.
Dielectric Withstand: >1500VAC/1 min.
Insulation Resistance: >106 Megohm @ 500VDC
Mechanical: Life: >10,000 cycles
Plug Insertion force: < 20 N
Plug Removal force: > 10 N Solderability: 95% coverage (min.)
Test Temperature: 230deg C +/- 10deg C
Test Time: 3 sec +/- 0.5 sec.
Nominal Panel Thickness:
Plastic Nut – 1.5mm / 4.6mm max.
Chrome Plated Metal Nut – 1.5mm / 4.3mm max.
ADN Version – 1.5mm / 3.0mm max.
Material: Housing: Nylon PA 6, UL94 HB
Contacts: Nickel-Silver Alloy, Tin Plated finish
Operating Temp: -10degC to +70degC
Rated Voltage: 2000V DC Min.
Dielectric Withstand: >1500VAC/1 min.
Insulation Resistance: >106 Megohm @ 500VDC
Mechanical: Life: >10,000 cycles
Plug Insertion force: < 20 N
Plug Removal force: > 10 N Solderability: 95% coverage (min.)
Test Temperature: 230deg C +/- 10deg C
Test Time: 3 sec +/- 0.5 sec.
Nominal Panel Thickness:
Plastic Nut – 1.5mm / 4.6mm max.
Chrome Plated Metal Nut – 1.5mm / 4.3mm max.
ADN Version – 1.5mm / 3.0mm max.
Material: Housing: Nylon PA 6, UL94 HB
Contacts: Nickel-Silver Alloy, Tin Plated finish
Operating Temp: -10degC to +70degC
